Big Dipper 350 Automatic Grease Removal Unit (2.21 l/s)
Big Dipper w-350-is-e point of source grease removal unit.  Integrated motor, heater, grease outlet & lid allows easy handing and installation

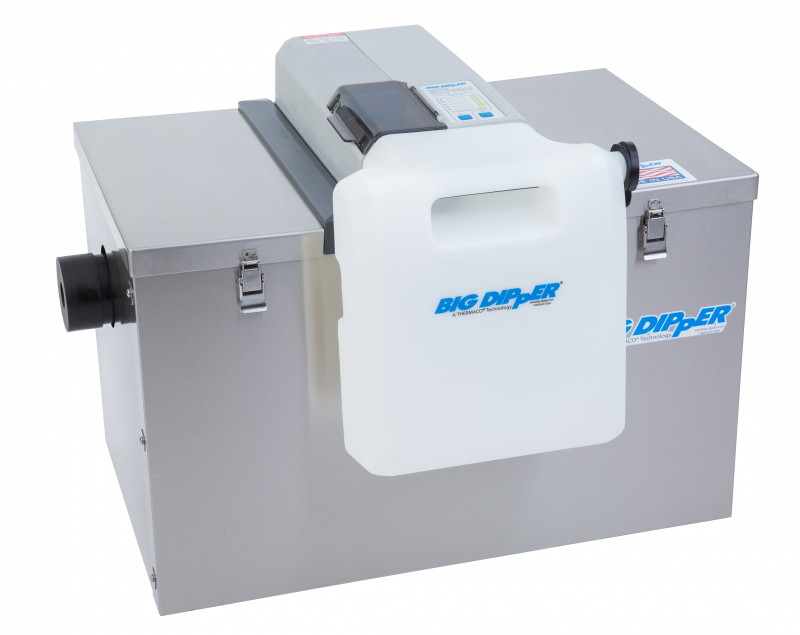

Big Dipper 350 automatic grease removal unit



Alternative Views:


Big Dipper 350
2.21 litres per second flow rate
Applications:
- Pre Rinse Sink
- 1-4 Compartment Sinks (610 x 610 x 381mm)
- Wok Range (5+ stations)
- Combi Ovens
- Ventilation Hood


Product Code: W-350-ISE
Qty:

Description Literature Downloads Extended Information

Big Dipper 350 (2.21 l/s flow rate)
Fully automatic self cleaning cycle. Removes collected fats, oils & grease from retention tank without any operator assistance. Comes complete with 24-hour timer and external collection container for easy disposal.

Constructed of corrosion resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.

Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.

Compact footprint. Two 50mm rubber couplers provided for simple installation on to kitchen waste pipework.

Product Information
Material Exterior:
304 Stainless Steel, Bright Finish
Material Interior:
Rotationally Molded Polyethylene
Electrical:
230 VAC, 50 Hz, 520 Watts (2.3 Amps)
Maximum Inlet Flow Rate:
2.21 l/s
Number of Skimming Wheels:
1
Grease Skimming Rate:
9.08 Kg Per Hour
Grease Retention Capacity:
31.8+ Kg
Internal Solids Strainer Capacity:
7 Liters

Single Fixture Sizing Applications:
- Pre Rinse Sink
- 1-4 Compartment Sinks (610 x 610 x 381mm)
- Wok Range (5+ stations)
- Combi Ovens
- Ventilation Hood
Features
  • Fully automatic self cleaning cycle. Thermaco Big Dipper W-250-IS features
    Removes collected grease & oils from tank without any operator assistance.
  • Comes complete with 24-hour timer and Grease Collector.
  • Constructed of corrosion resistant materials suitable for installation in virtually any location.
  • Attractive sanitary Stainless Steel exterior.
  • Integrated Motor/Grease Outlet/Heater/Lid enables easy handed installation.
  • Compact footprint.

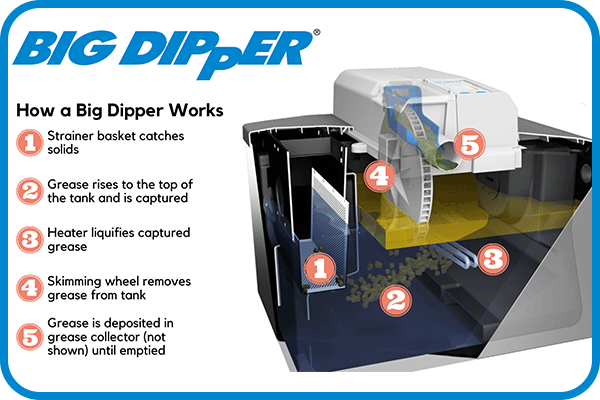

    Benefits of the Big Dipper system
  • Removes over 98% of fat, oil and grease from the drain line
  • No ongoing maintenance costs or biological solutions required
  • Filters incidental food solids
  • Prevents drain blockages
  • Protects pipe work with point of source removal (including connected pumping equipment)
  • Removes the need for routine drain jetting
  • Prevents odours
  • Improves hygiene
  • Reduces overall drainage costs
