ECO-JET – Free Standing Grease Seperator

ECO-JET free-standing grease separators are available in Standard and Level 1 formats providing choice and full flexibility of operation with matched degrees of sophistication and automation to suit the application and budget.

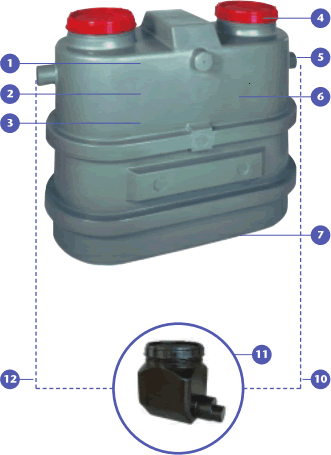

Features and BenefitsECO-Jet Features & Benefits 1
  1. Oval body contour for easy door accessibility
  2. One-piece lightweight monocoque construction for easy handling and transport
  3. Corrosion resistant rotationally moulded polyethylene body (316 stainless steel available to special order).
  4. Two air-tight easy screw access lids for servicing and cleaning.
  5. Ø110mm inlet/outlet spigots. Integrated sampling station in outlet on NS 7 and 10 models.
  6. Tough site-friendly body with integrated strengthening ribs to withstand internal water pressure.
  7. Flat base ensures high stability during installation and service.

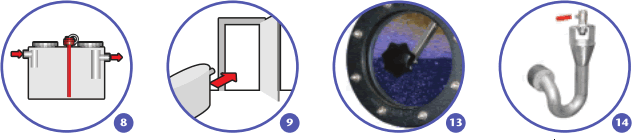

  8. Available in Standard format and Level 1 format with direct suction 3” Bauer service connection coupling to prevent odours during servicing.
  9. NS 1-4: maximum width 800mm
    NS7 and 10: maximum width 930mm
  10. Sampling station, horizontal or vertical outlet options available.
  11. Pre-filter/sampling station supplied with air tight cover
  12. Course pre-filter to remove particles of 10mm or greater. Removable stainless steel filter basket with 10mm x 10mm screen size and 3.3 litre sludge capacity.
  13. The viewing window provides a quick and convenient method of assessing FOG level. Comes with rotating wiper blade. This item is a factory fitted accessory.
  14. The clean water filling station allows re-filling of the separator with water following a service. The open tundish design prevents back-siphoning, the 75mm foul air trap and manual flow control tap add convenience and safety. This item is a factory fitted accessory.

    Eco-Jet Features 2

 Eco-Jet Statistics





Statistic





Eco-Jet Std
Part No.

Eco-Jet Level 1 Part No.

Flow
Rate

L/S

Grease Capacity Litres

Sludge Capacity Litres

Dry
Weight
KG

Filled Weight
KG

Nominal Size
(NS)

1

04332

04333

1.0

125

111

45

497

2

04334

04335

2.0

121

200

65

685

3

04336

04337

3.0

121

300

65

785

4

04338

04339

4.0

166

400

75

1050

7

04340

04341

7.0

400

700

170

2042

10

04342

04343

10.0

400

1000

170

2342

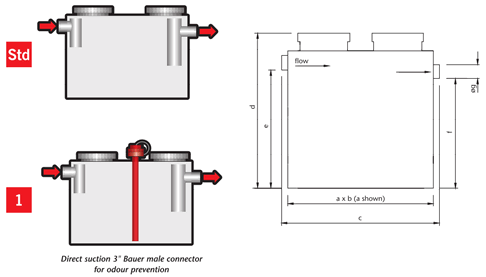

Eco-Jet Dimensions





Dimensions (mm)





A

B

C

D

E

F

G

Nominal Size
(NS)

1

1135

750

1235

1215

930

860

110

2

1540

750

1640

1215

880

810

110

3

1540

750

1640

1215

1010

940

110

4

1850

780

1950

1300

1010

940

110

7

2370

920

2615

1825

1210

1110

160

10

2370

920

2615

1825

1392

1292

160



The Eco-Jet range are currently not available to buy online,
please contact our technical sales department for further information.
