HYDROJET Self Cleaning Free Standing Grease SeparatorHydroJet free-standing grease separators are available in Standard and Level 1 formats providing choice and full flexibility of operation with matched degrees of sophistication and automation to suit the application and budget. HYDROJET models present sophisticated integrated self cleaning functions.

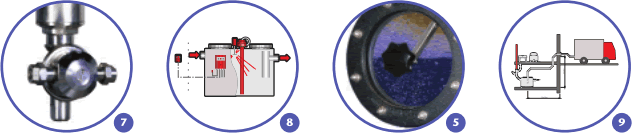

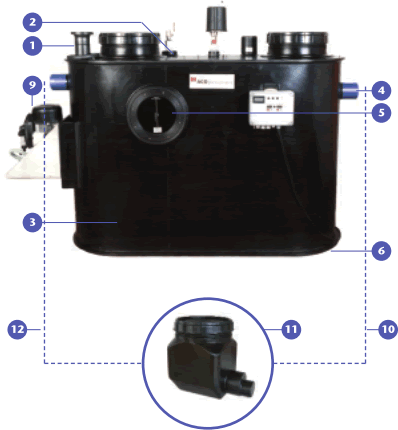

Features and Benefits
- Direct suction 3” Bauer male connector supplied to prevent odours during servicing.
- Oval body contour for convenient door accessibility.
- One-piece lightweight impact and corrosion resistant polyethylene construction for easy handling and transport (316 stainless steel available to special order).
- Connector friendly inlet/outlet spigots. Integrated sampling station in outlet on NS 7 and 10 models.
- FOG level viewing window as standard, available right or left hand reference to inlet.
- Flat base ensures high stability during installation and service.
- Built-in high pressure (170 bar) rotating head grease cutting and cleaning facility with choice of manual or automatic control.
- Available in Standard format as described above under manual control and Level 1 format with full automatic control.
- Disposal pump to aid servicing where head height exceeds 6 metres, or total horizontal run of connecting pipework is greater than 30m, under manual or automatic control to suit Standard or Level 1 formats.
- Sampling station, horizontal or vertical outlet options available.
- Pre-filter/sampling station supplied with air tight cover.
-
Course pre-filter to remove particles of 10mm or greater. Removable stainless steel filter basket with 10mm x 10mm screen size and 3.3 litre sludge capacity.
Service requirements:
3.9kW 415V 3-phase 50Hz supply. (6.9kW 415V 3-phase 50Hz with disposal pump fitted). Clean water supply, 4 bar maximum pressure.
HYDROJET Statistcs
|
|
|
Viewing Window Position* |
HYDROJET Std
Part No. |
HYDROJET Level 1 Part No. |
Flow
Rate
L/S |
Grease Capacity Litres |
Sludge Capacity Litres |
Dry
Weight
KG |
Filled Weight
KG |
|
Nominal Size
(NS) |
1 |
Right Hand
Left Hand |
04352
04353 |
04354
04355 |
1.0 |
125 |
111 |
146 |
598 |
|
2 |
Right Hand
Left Hand |
04356
04357 |
04358
04359 |
2.0 |
121 |
200 |
172 |
792 |
|
3 |
Right Hand
Left Hand |
04360
04361 |
04362
04363 |
3.0 |
121 |
300 |
176 |
896 |
|
4 |
Right Hand
Left Hand |
04364
04365 |
04366
04367 |
4.0 |
166 |
400 |
221 |
1196 |
|
7 |
Right Hand
Left Hand |
04368
04369 |
04370
04371 |
7.0 |
400 |
700 |
355 |
2227 |
|
10 |
Right Hand
Left Hand |
04372
04373 |
04374
04375 |
10.0 |
400 |
1000 |
377 |
2342 |

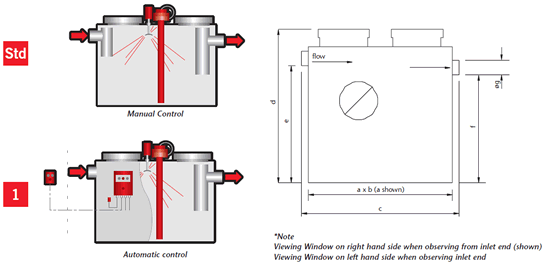

HYDROJET Dimensions
|
|
|
Dimensions (mm) |
|
|
|
A |
B |
C |
D |
E |
F |
G |
|
Nominal Size
(NS) |
1 |
1140 |
700 |
1565 |
1485 |
1090 |
1020 |
110 |
|
2 |
1496 |
700 |
1922 |
1431 |
1040 |
970 |
110 |
|
3 |
1496 |
700 |
1922 |
1561 |
1170 |
1100 |
110 |
|
4 |
1860 |
760 |
2274 |
1581 |
1190 |
1120 |
110 |
|
7 |
2340 |
910 |
2829 |
1885 |
1390 |
1290 |
160 |
|
10 |
2240 |
910 |
2829 |
2065 |
1570 |
1470 |
160 |
The HYDROJET systems are currently not available to buy online,
please contact our technical sales department for further information.
|
