LIPUTEC Below Ground Separators
Our Liputec grease separators offer the most cost effective component system solutions. The separator body is not a load bearing structure therefore any wheel or traffic loadings must be supported via a suitable slab (designed by others) to support the applied loadings.
-

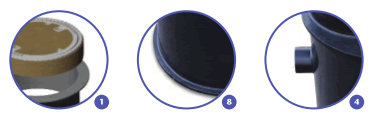

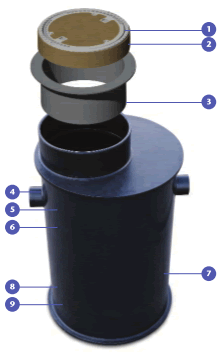

Load Class D400 cast iron access cover with single seal
- 600mm clear opening access cover for easy servicing access.
- Raising tube easily cut on site to suit specific inlet/outlet pipe invert requirements.
- Ø110mm or Ø160mm inlet/outlet spigots.
- Highly corrosion resistant high density polyethylene construction.
- Lightweight construction for easy of handling.
- Tough, fully welded construction withstands site handling, concrete pour and groundwater pressures.
- Concrete anchor flanges to arrest buoyancy in high water table applications.
-
Flat base ensures high stability during site movement, storage and installation.
LIPUTEC Technical Data
|
|
|
Liputec System
Part No. |
Flow
Rate
L/S |
Grease Capacity Litres |
Sludge Capacity Litres |
HDPE Body
Weight
KG |
D400 Cover Weight
KG |
|
Nominal Size
(NS) |
1 |
403660 |
1.0 |
180 |
100 |
96 |
165 |
|
2 |
403661 |
2.0 |
180 |
200 |
111 |
165 |
|
4 |
403662 |
4.0 |
210 |
400 |
119 |
165 |
|
7 |
403663 |
7.0 |
290 |
700 |
176 |
165 |
|
10 |
403665 |
10.0 |
400 |
1000 |
235 |
165 |

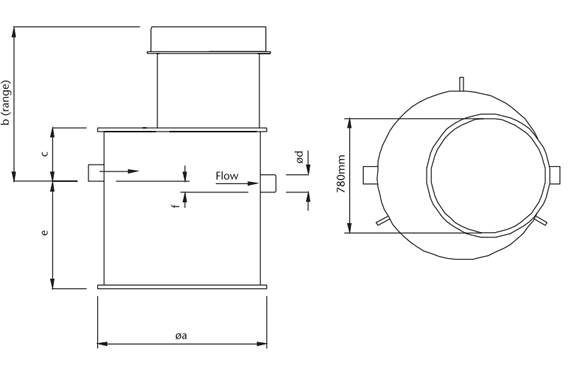

LIPUTEC Dimensions
|
|
|
A |
B |
C |
D |
E |
F |
|
Nominal Size
(NS) |
1 |
1100 |
738-1000 |
345 |
110 |
705 |
70 |
|
2 |
1100 |
743-1000 |
350 |
110 |
830 |
70 |
|
4 |
1100 |
798-1000 |
405 |
160 |
1145 |
70 |
|
7 |
1300 |
858-1000 |
465 |
160 |
1385 |
70 |
|
10 |
1600 |
740-1000 |
348 |
160 |
1367 |
100 |
The LIPUTEC below ground separators are currently not available for purchase online,
please phone our technical support team for further details and prices on 01386 832205 |
