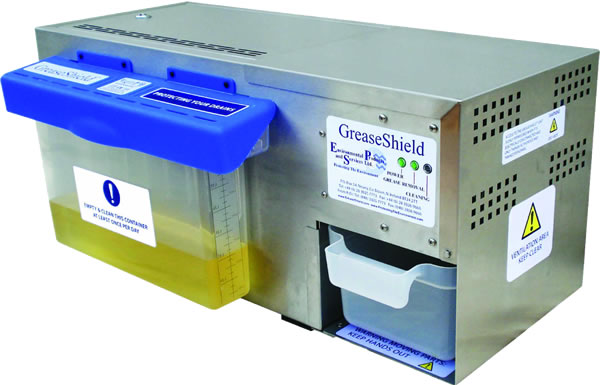

Grease Shield GS1850
- 1.8 litres per second flow rate

Grease Shield GS1850 (1.8 litres per second flow rate)
Please contact us for a quotation!

Grease Shield GS1850 dimension sizes

About the Grease Shield GS1850 AST grease trap
The GreaseShield ® Grease Trap is a fully Automatic Grease Separation and Solids Removal grease trap providing Automatic Solids Transfer and FOG (fats, oils and grease) removal externally eliminating the need for staff to access the inside of the grease trap

STAGE ONE: FOOD REMOVAL
As effluent enters the grease trap food debris is automatically removed by a filter screen. The solids are removed, dewatered by an auger and discharged into a separate collection container for disposal.

STAGE TWO: FOG REMOVAL
5 co-operating baffles and a reverse direction flow force the effluent to travel twice the length of the system. This forces the fats, oils and grease with a lower specific gravity than water into contact with the FOG removal means, running the length of the grease trap. Waste thermal energy is utilised to reduce the FOGs whilst they are still running.

STAGE THREE: CONTINUATION OF FOG REMOVAL
Inside the GreaseShield’s ® separation chamber is a semi submerged slowly rotating roller. Constructed in an oil-repellent material the roller becomes coated in FOGs, as it turns. The roller is scraped clean by a rubber blade having anti friction properties. The FOG contaminants are collected in an external container.

STAGE FOUR: SELF CLEANING
The GreaseShield ® has a unique self-cleaning system. There is no need for staff to go inside the GreaseShield. The cycle includes a process to deal with dairy products and eliminate odours

Benefits of the Grease Shield

  • Removes fat, oil and grease (down to 100ppm)
  • Removes food waste
  • Completely odour free
  • Prevents drain blockages
  • No staff cleaning - just empty the removed food and grease at the end of each service or day

Main features

  • Automatic Grease Removal
  • Automatic Food Removal
  • Automatic cleaning cycle
  • Multiple inlets
  • Stainless steel construction
  • Low power usage
  • Optional sample point
  • Extended effluent residence time

Ideal for connection to

  • Sinks
  • Rotisseries
  • Combi ovens
  • Dishwashers
  • Wok cooking stations

Contact our office on 01386 832205.

Grease Shield GS1850 AST
