Big Dipper 500 Automatic Grease Removal Unit (3.15 l/s)
Big Dipper w-500-is-e point of source grease separator 3.15 litres per second flow rate for fat, oil and grease removal.

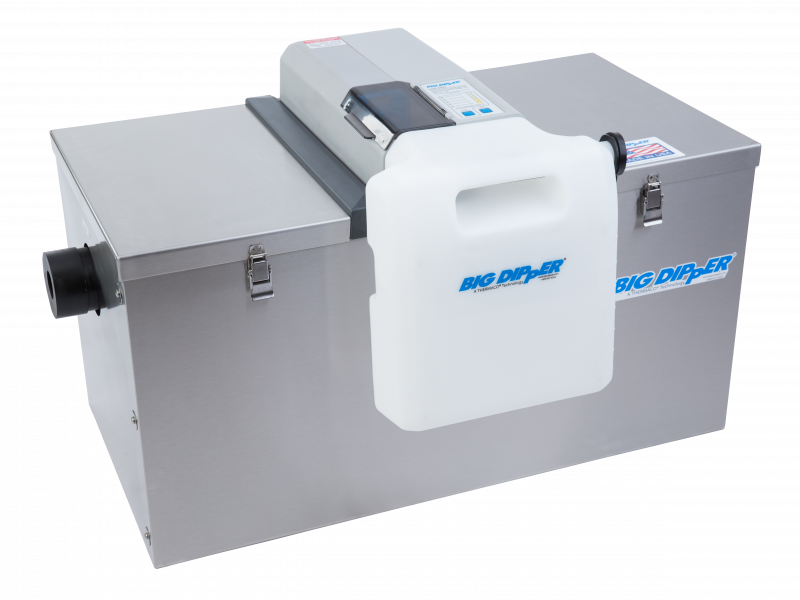

Big Dipper 500 automatic grease removal unit



Alternative Views:


Big Dipper 500
3.15 litres per second flow rate
Applications:
- Pre Rinse Sink
- 1-6 Compartment Sinks (610 x 610 x 381mm)
- Wok Range (8+ stations)
- Combi Ovens
- Ventilation Hoods


Product Code: W-500-ISE
Qty:

Description Literature Downloads Extended Information

Big Dipper 500 (3.15 l/s flow rate)

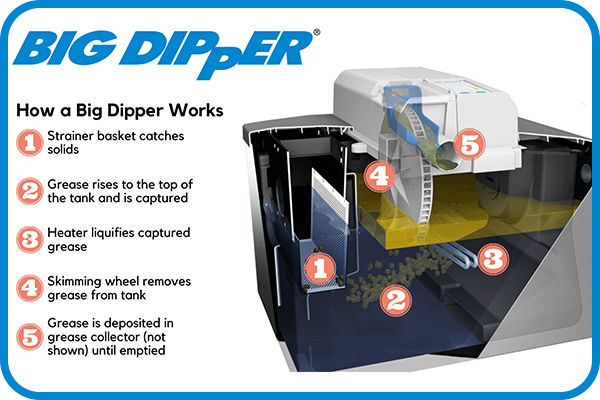

Fully automatic self cleaning cycle. Removes collected fats, oils & grease from retention tank without any operator assistance. Comes complete with 24-hour timer and external collection container for easy disposal.

Constructed of corrosion resistant materials suitable for installation in virtually any location. Attractive sanitary Stainless Steel exterior.

Integrated Motor/Grease Outlet/Heater/Lid enables a fast, do-it-yourself unit operation reversal.

Compact footprint. Two 50mm rubber couplers provided for simple installation on to kitchen waste pipework.

Product Information
Material Exterior:
304 Stainless Steel, Bright Finish
Material Interior:
Rotationally Molded Polyethylene
Electrical:
230 VAC, 50 Hz, 520 Watts (2.3 Amps)
Maximum Inlet Flow Rate:
3.15 l/s
Number of Skimming Wheels:
1
Grease Skimming Rate:
9.08 Kg Per Hour
Grease Retention Capacity:
45.4+ Kg
Internal Solids Strainer Capacity:
9.5 Liters

Single Fixture Sizing Applications:
- Pre Rinse Sink
- 1-6 Compartment Sinks (610 x 610 x 381mm)
- Wok Range (8+ stations)
- Combi Ovens
- Ventilation Hoods
Features
  • Fully automatic self cleaning cycle. Thermaco Big Dipper W-250-IS features
    Removes collected grease & oils from tank without any operator assistance.

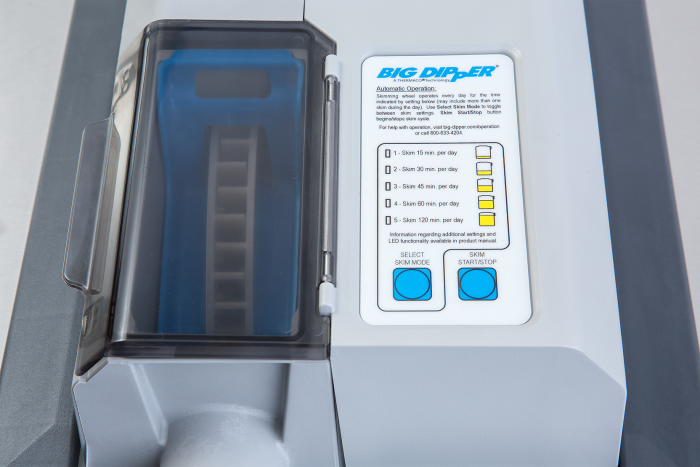

  • Comes complete with 24-hour timer and Grease Collector.
  • Constructed of corrosion resistant materials suitable for installation in virtually any location.
  • Attractive sanitary Stainless Steel exterior.
  • Integrated Motor/Grease Outlet/Heater/Lid enables easy handed installation.
  • Compact footprint.

    Benefits of the Big Dipper system
  • Removes over 98% of fat, oil and grease from the drain line
  • No ongoing maintenance costs or biological solutions required
  • Filters incidental food solids
  • Prevents drain blockages
  • Protects pipe work with point of source removal (including connected pumping equipment)
  • Removes the need for routine drain jetting
  • Prevents odours
  • Improves hygiene
  • Reduces overall drainage costs
