Super Capacity Grease Interceptor

The Trapzilla® Super Capacity Grease Trap collects free-floating Fats, Oils and Grease (FOG) contained in kitchen drain water flows. As most food service facility managers already know, FOG buildup inside a building’s grease containment system is a major cause of problems due to exterior drain line blockages. These problems jeopardise normal operations as well as causing health and safety hazards within the facility itself. The installation of a Trapzilla® Super Capacity Grease Trap can eliminate these grease problems.

Use of a Trapzilla® system assures minimisation and elimination of costly drain line cleaning and fines through efficient separation and retention of free-floating fats, oils and grease.
.
Why does Trapzilla® offer a better solution?
The unique design of the Trapzilla® provides advantages that a traditional, below ground grease trap doesn’t have.
The Trapzilla® offers patented flat separation curve technology.
Traditional grease interceptors frequently suffer separation efficiency losses when the grease layer exceeds 25% of the internal liquid depth volume. This is why these older grease interceptors have very large footprints - to provide an adequate operating service period before reaching 25% full. The unique design of the Trapzilla maintains peak separation efficiency well past the 25% full threshold, allowing it to store large quantities of fats, oils and grease in a small footprint.

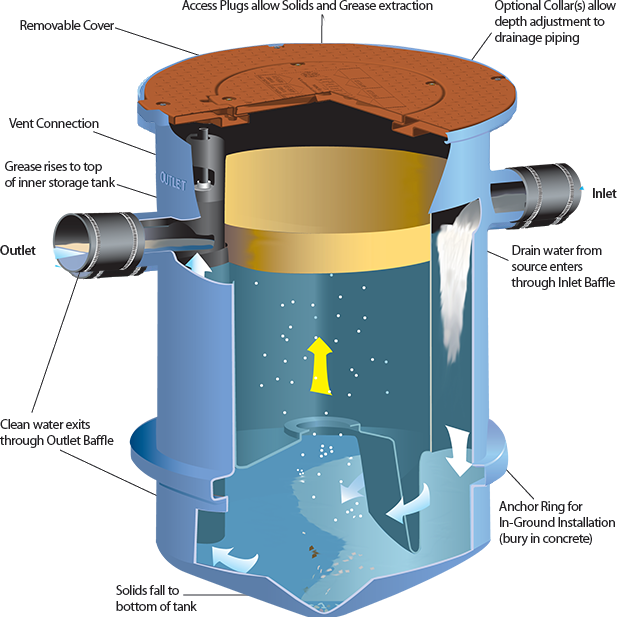

How a grease trap works Trapzilla

What is thermal inversion?
The Trapzilla® also has a horizontal baffle that prevents thermal inversion. What is thermal inversion? When warmer effluent enters the grease trap, the trapped cold water layer under the retained grease layer suddenly falls downward as rapidly rising hotter water rises to take the place of the cold water. As the cold water layer falls, it also pulls the underside of the overhead grease layer down along with it into the rapidly moving water low along the bottom of the separator. Thermal inversion is why traditional grease separators have large internal volumes. As the grease layer approaches 25% of the internal volume depth in traditional grease traps, thermal inversion effect losses may occur. In layman’s terms, the traditional grease trap becomes a gigantic lava lamp. The Trapzilla’s patented/patent pending thermal inversion control design retains high-separation efficiency and high grease capacity within a small footprint ideal for space constrained food service establishments.

Installation Options
The compact design of the Trapzilla® allows for installation into most facilities. Options are available enabling a Trapzilla® unit to be installed free standing on the floor, suspended from the ceiling or in-ground outside the facility
Trapzilla Installation options

Capacity and Flow Rates
Trapzilla® units are designed to treat high flows of kitchen drain water with large grease storage capacity within a small footprint unit. These units
are lightweight and compact, which means that they can be maneuvered into position with minimum labor.

Available Models

Literature Downloads

File Type

File Details and Information

Trapzilla Brochure
Full brochure and model ranges for the Trapzilla grease trap


Sort By:
Page of 1
Trapzilla TZ-160 by Thermaco grease trap interceptor
Trapzilla TZ-160 (2.21 l/s)

Trapzilla TZ-160
Flow Rate: 2.21 litres per second
Construction: Rotationally Molded Polyethylene
Grease Retention Capacity: 72+ KG
Inlet/Outlet: 3” (75 mm)
Trapzilla TZ-400 by Thermaco fat interceptor
Trapzilla TZ-400 (7.73 l/s)

Trapzilla TZ-400
Flow Rate: 7.73 litres per second
Construction: Rotationally Molded Polyethylene
Grease Retention Capacity: 181+ KG
Inlet/Outlet: 4” (100 mm)
Trapzilla TZ-600 by Thermaco Interceptor
Trapzilla TZ-600 (9.46 l/s)

Trapzilla TZ-600
Flow Rate: 9.46 litres per second
Construction: Rotationally Molded Polyethylene
Grease Retention Capacity: 272+ KG
Inlet/Outlet: 4” (100 mm)
